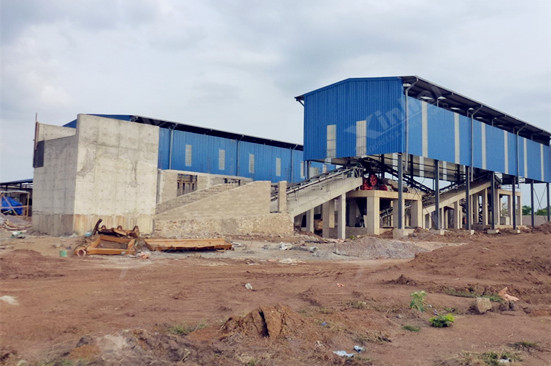

Tanzania 150t/d Gold Mineral Processing Plant

Project Overview

This project is a 150t/d gold processing plant located in Tanzania. The plant was designed based on metallurgical test results and reference to similar CIP/CIL operations.

The ore is characterized by the presence of recoverable coarse gold alongside fine gold fractions. Based on these characteristics, a combined process of gravity separation and cyanidation leaching was adopted to improve overall recovery while maintaining a stable and efficient processing system.

Xinhai Solution

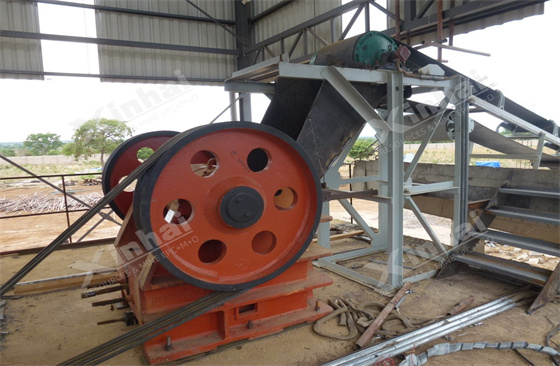

• Two-Stage Closed-Circuit Crushing: A two-stage crushing circuit was applied to reduce run-of-mine ore and provide a consistent feed for grinding.

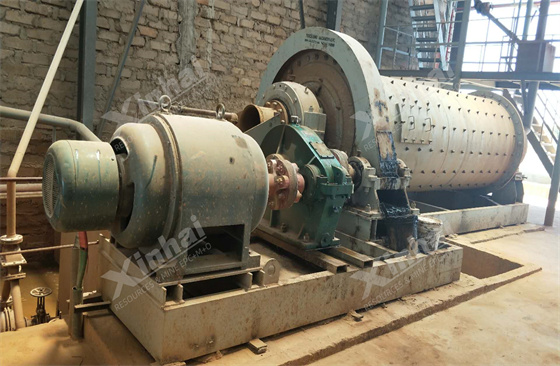

• Two-Stage Grinding with Gravity Separation: A two-stage grinding system with hydrocyclone classification was adopted. A jigging and shaking table circuit was introduced after the first grinding stage to recover coarse gold, while the remaining slurry proceeds to further grinding and classification.

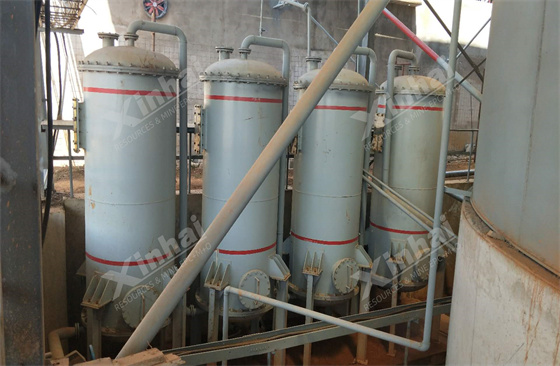

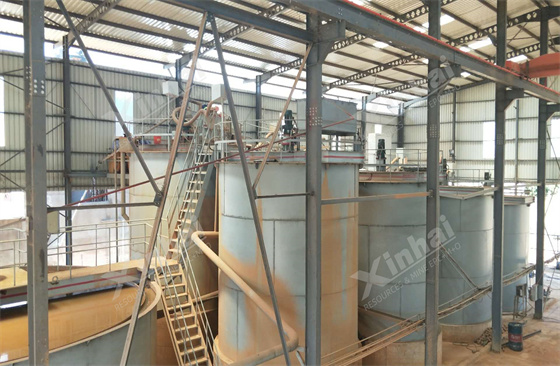

• Cyanidation Leaching and Adsorption (CIL): The classified slurry is thickened and treated in an eight-stage leaching and adsorption system, enabling effective recovery of dissolved gold through activated carbon.
• Desorption, Smelting, and Tailings Treatment: Gold-loaded carbon is processed through desorption-electrolysis and smelting to produce doré. Tailings are dewatered by filtration for dry stacking, with process water recycled within the plant.

Major Equipment

Project Achievements

The plant design provides a balanced solution for treating both coarse and fine gold fractions, achieving efficient resource utilization. The integrated gravity and cyanidation flowsheet supports stable operation, while the dry tailings stacking and water recycling system improves environmental performance.
